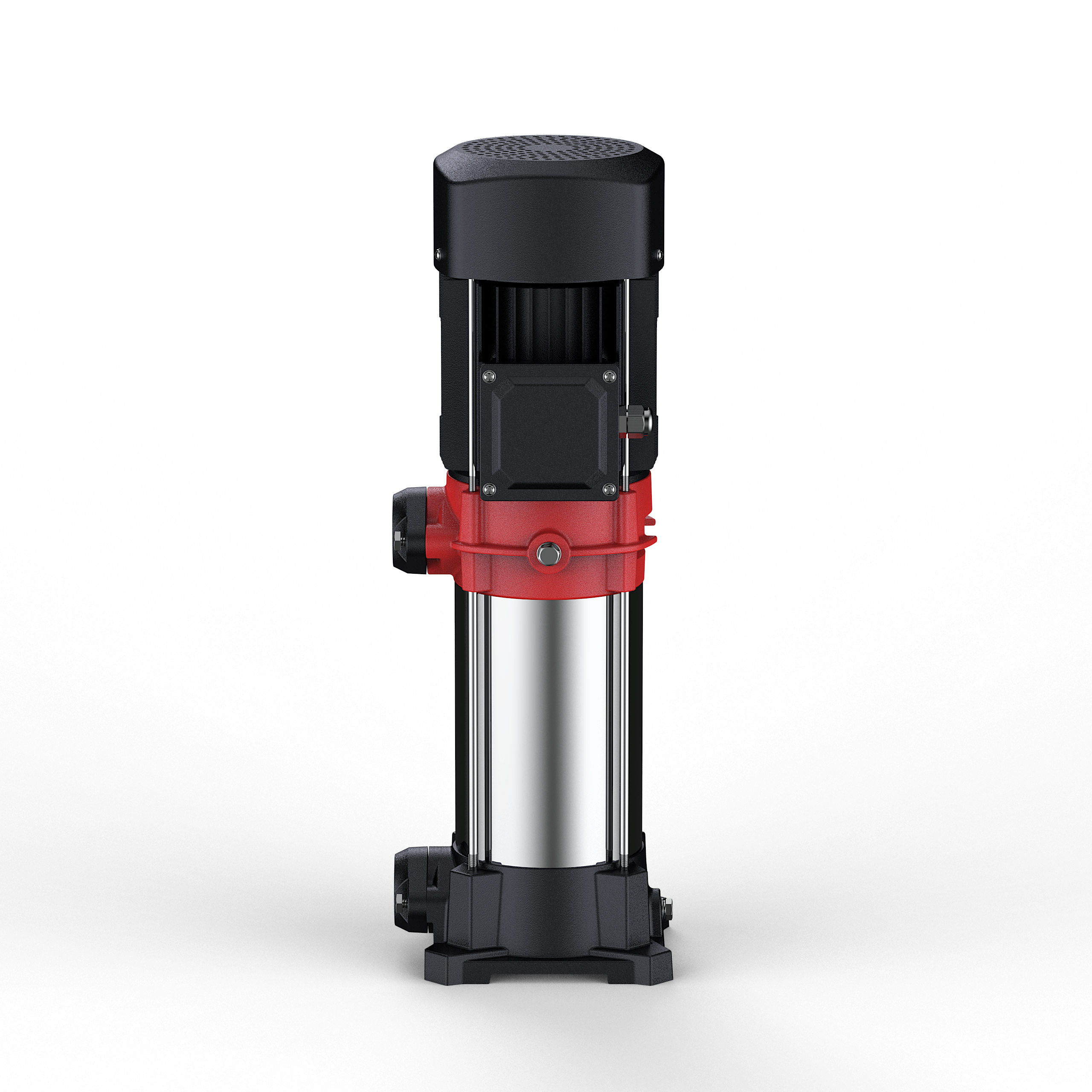

Draconis P(D)L vertical multi-stage pump boasts high efficiency, low noise and compact structure for easy installation and maintenance. Constructed with cast iron pump housing and wear-resistant PPO impellers, it achieves a maximum lift of 150m with IP55 protection grade, widely adopted for high-rise water supply, pipeline pressurization, boiler water supply and various water treatment projects.
| Model | P(D)L |
| Powersource | 220V50HZ/380V50HZ |
| Power | 1.1-3KW |
| Approved fluids | Clean water |
| Max flow | 4-15m3/h |
| Max head | 38-153m |
| Rated flow | 2-6m3/h |
| Rated head | 36-115m |
| Inlet/Outlet range | DN25-DN32 |
| Casing | Cast iron |
| Impeller | PPO |
| Shaft | SS304 |
P(D)L
