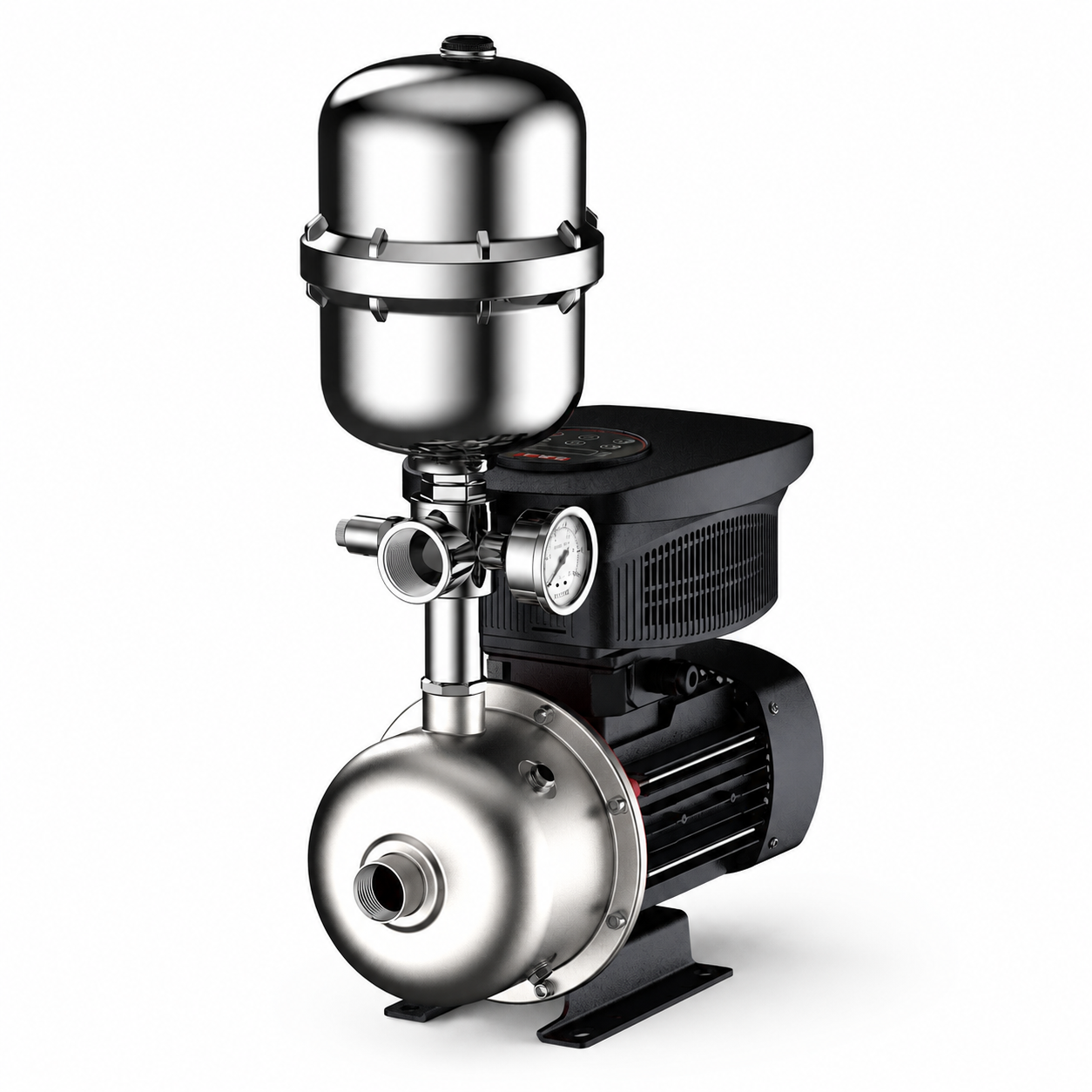

Integrated Cylindrical Structure
The pump body brings the multistage hydraulic assembly into a single cylindrical housing, forming a compact horizontal unit.
Draconis CHL pump adopts integrated cylindrical stainless steel structure with excellent sealing performance, fully stainless steel wetted parts to protect clean water quality. Equipped with IP55 Class-F high-efficiency low-noise motor, it works steadily within -15℃~70℃, ideal for domestic water boosting, HVAC cooling circulation and water treatment systems.
The CHL horizontal multistage centrifugal pump uses an integrated cylindrical body with SS304 casing, impellers, and shaft. This construction provides a clear material specification for clean-water systems.
The pump body brings the multistage hydraulic assembly into a single cylindrical housing, forming a compact horizontal unit.

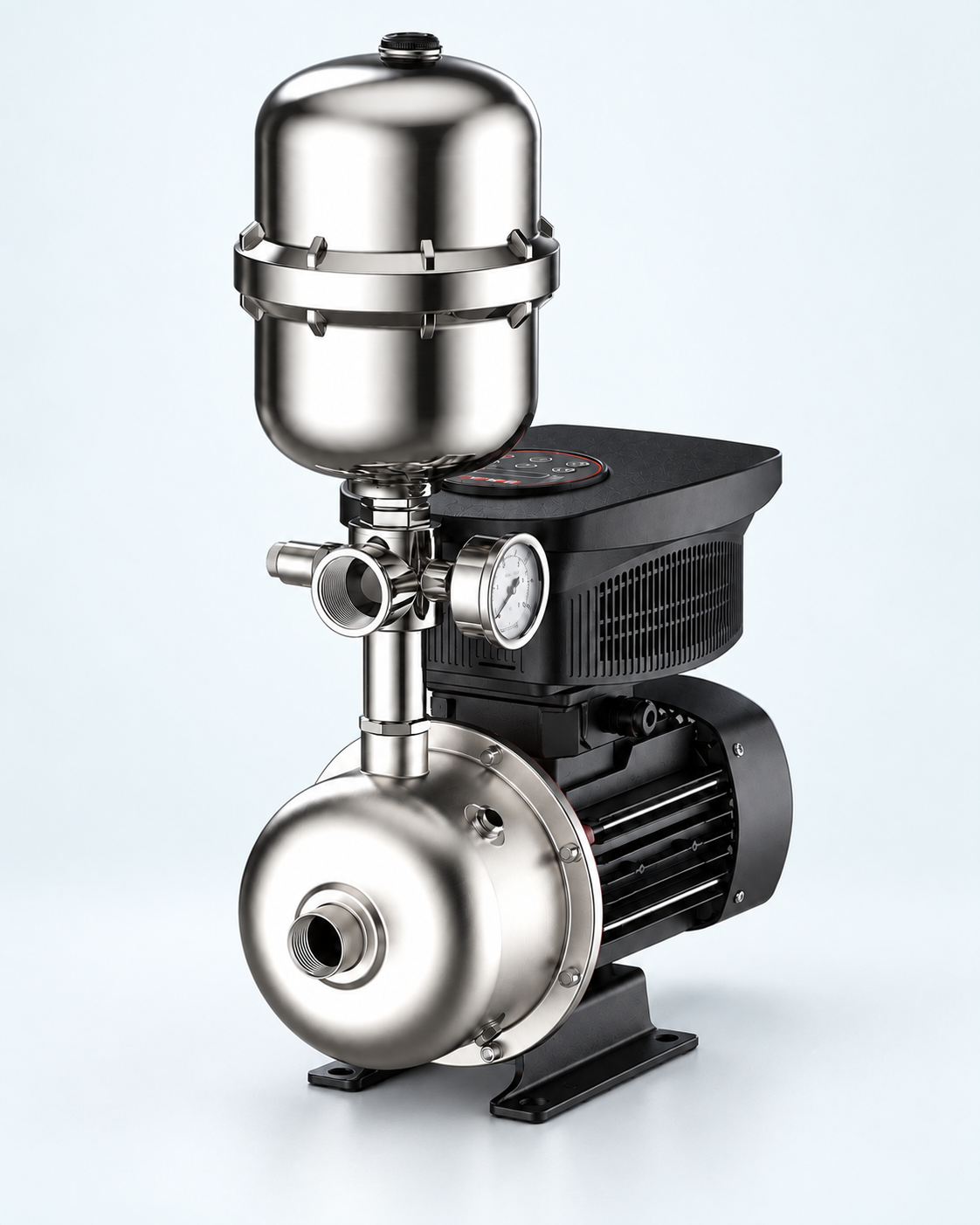

The casing, impellers, and shaft are made from SS304.
The published configuration includes an IP55 motor with Class F insulation.

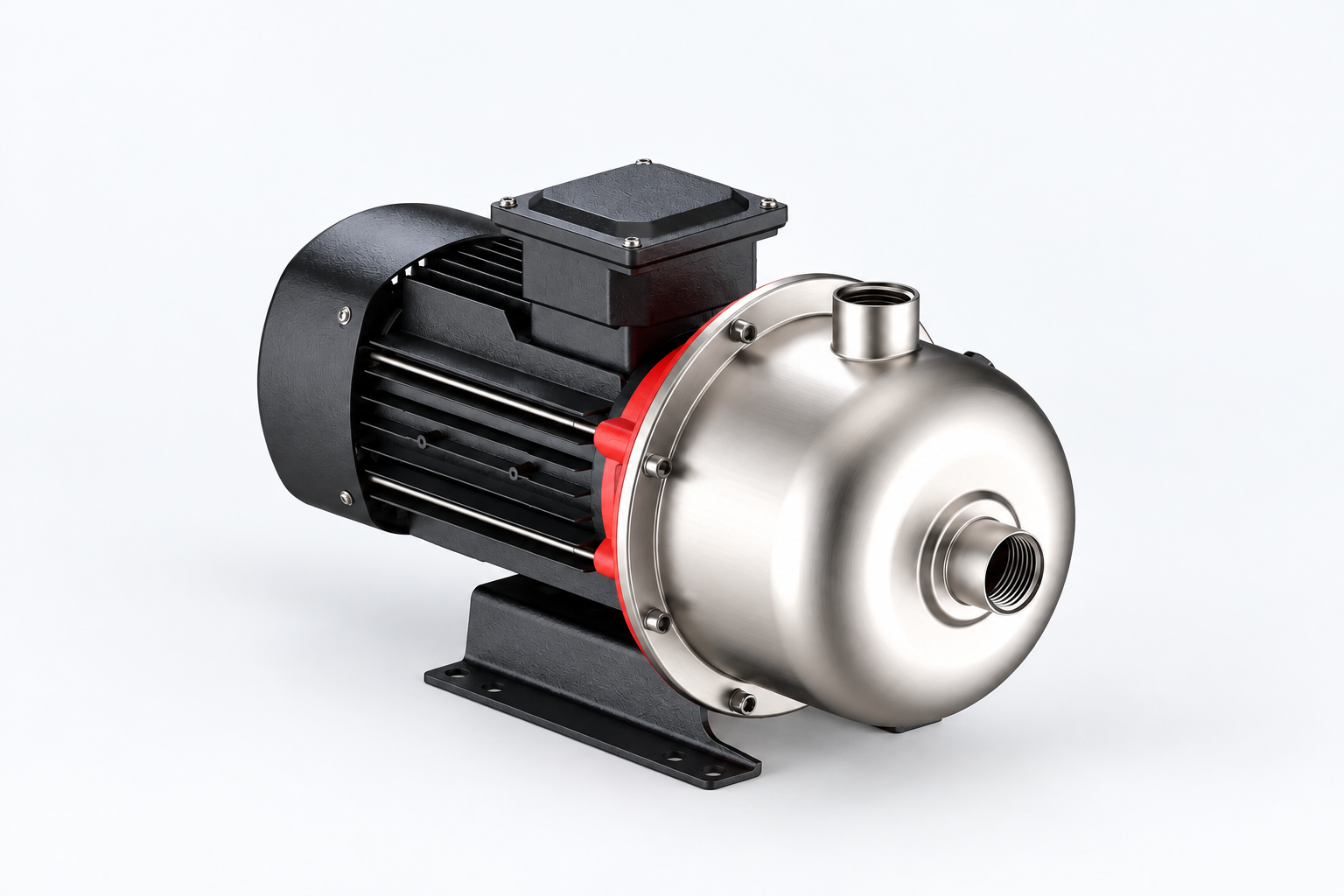

CHL is a horizontal centrifugal water pump for clean-water boosting, HVAC cooling circulation, and water treatment equipment.
Provides additional pressure for household water-supply systems where the existing supply cannot meet the required flow and delivery pressure.
Circulates clean water through cooling equipment and associated pipework.
Supports clean-water transfer and pressure boosting within filtration and treatment systems.
Supply the CHL horizontal multistage centrifugal pump under your own brand, with customization covering your logo, model naming, nameplate, manuals, and packaging. For qualifying quantities, we can coordinate these details with your existing catalog and sales requirements.
Share your order quantity, destination market, and branding brief so we can confirm the customization scope, price, and production schedule. Approved artwork and packaging details are retained for repeat orders, helping you replenish a consistent branded product.
Provide the required operating flow and head, inlet conditions, pipe size and electrical supply. We check these requirements against the selected model rather than choosing from maximum values alone.
No. Motor power alone does not define the operating duty. The hydraulic model must deliver the required flow at the specified head.
The current range lists 220 V, 220–240 V and 380 V / 50 Hz options, depending on the model. Send your required voltage, frequency and phase for confirmation.
Yes. For qualifying order quantities, we can discuss branding, nameplates, manuals, packaging and agreed inspection requirements. Available changes are confirmed before production.
Please provide the model or duty point, electrical requirements, order quantity, delivery destination and any OEM specifications. These details allow us to quote the appropriate configuration.
| Model | CHL |
| Powersource | 220V50HZ/380V50HZ/220V-240V50HZ |
| Power | 0.25-3KW |
| Approved fluids | Clean water |
| Max flow | 3.5-28m3/h |
| Max head | 7.5-60m |
| Rated flow | 2-20m3/h |
| Rated head | 14-50m |
| Inlet/Outlet range | DN25-DN50 |
| Casing | SS304 |
| Impeller | SS304 |
| Shaft | SS304 |
CHL Horizontal Multistage Centrifugal Pump
