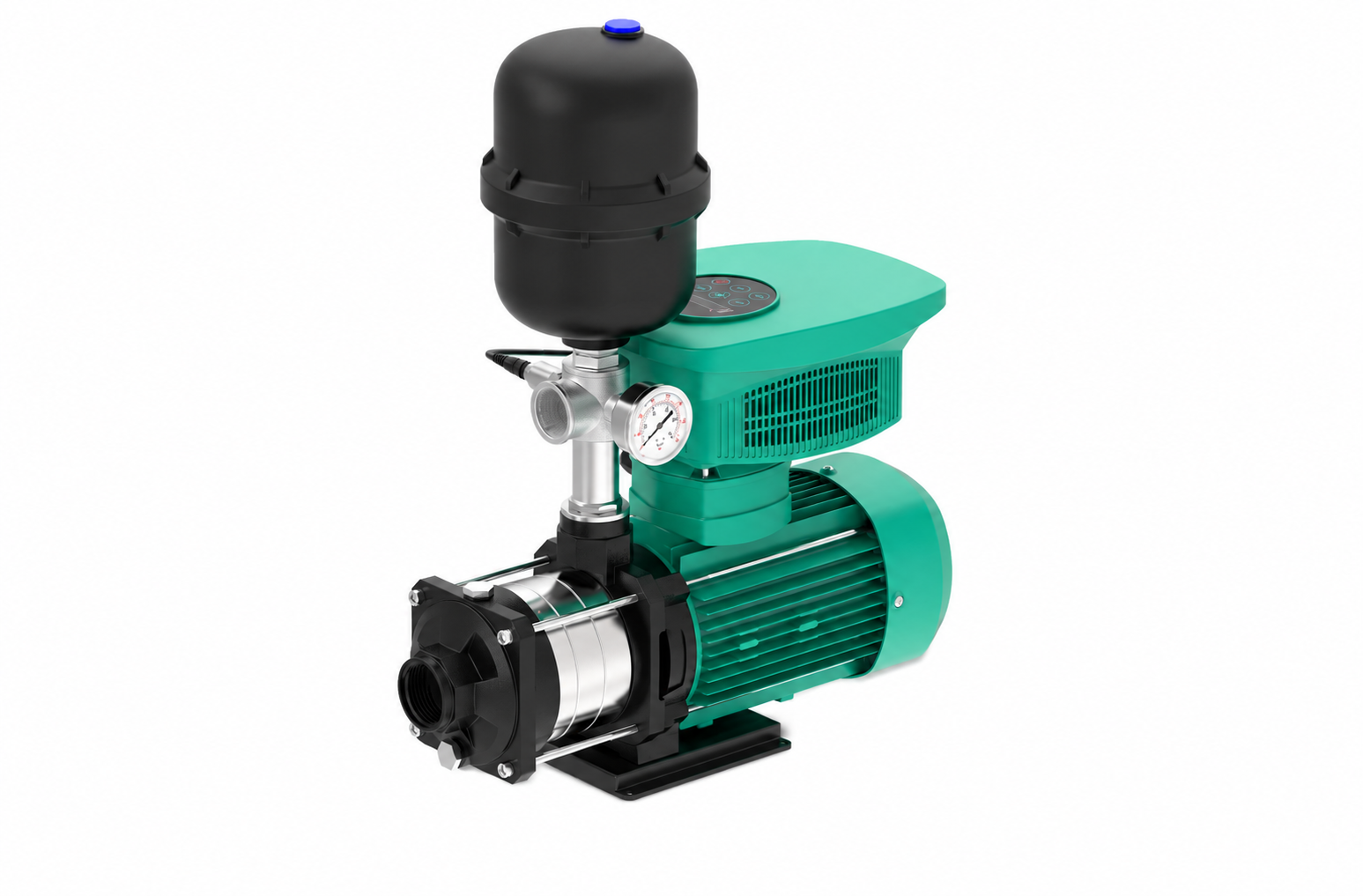

Draconis MHIL horizontal multi-stage stainless steel pump features AISI304 stainless steel wetted components and high-pressure multi-stage impellers, equipped with an IP54 Class-F full copper motor. It transports clean water within 0-90℃, widely used for water boosting, HVAC circulation, industrial cooling and sprinkler systems, with optional automatic pressure and constant frequency control configurations for diverse working conditions
| Model | MHIL |
| Powersource | 220V50HZ/380V50HZ |
| Power | 0.37-1.85KW |
| Approved fluids | Clean water |
| Max flow | 5-12m3/h |
| Max head | 22-59m |
| Rated flow | 2-8m3/h |
| Rated head | 20-47m |
| Inlet/Outlet range | DN25-DN40 |
| Casing | Cast iron |
| Impeller | SS304 |
| Shaft | SS304 |
