IRG vertical single-stage single-suction pipeline centrifugal pump transfers clean cold & hot water and similar non-corrosive liquids.
Max system pressure: 1.6MPa. Medium temp ≤100℃.
Solid insoluble content ≤0.1%, particle size ≤0.2mm.
Widely used for boiler hot water boosting & urban heating circulation in energy, metallurgy, textile, hotel industries.
Vertical inline design saves space, simple installation, smooth running & low noise.
| Model | IRG |
| Powersource | 220V50HZ/380V50HZ |
| Power | 0.75-250KW |
| Approved fluids | Clean water |
| Rated flow | 3.5-1200m3/h |
| Rated head | 9-80m |
| Inlet/Outlet range | DN25-DN300 |
| Casing | HT200,HT250 |
| Impeller | HT200,HT250 |
| Shaft | HT200,HT250 |

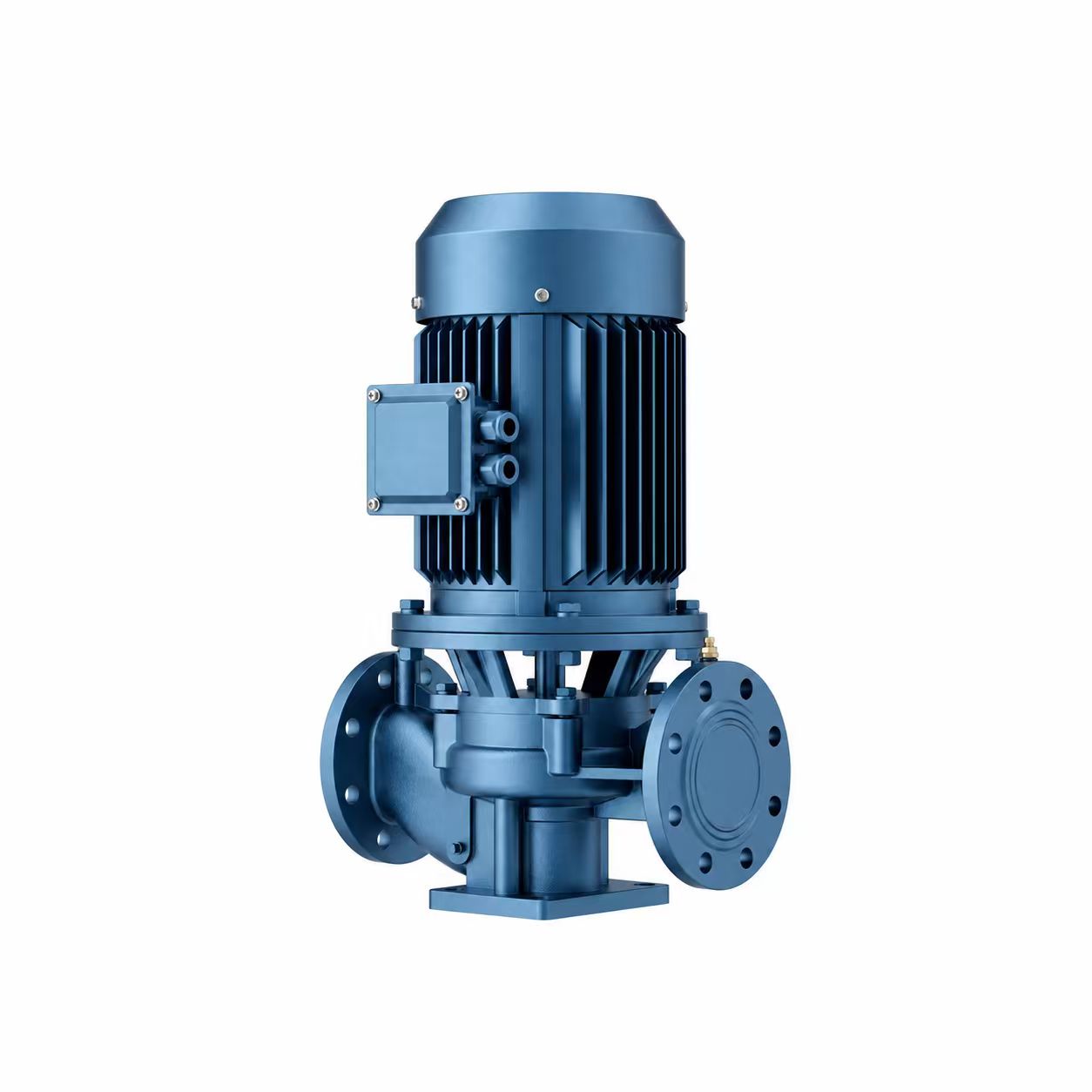

IRG Vertical Inline Centrifugal Pump
