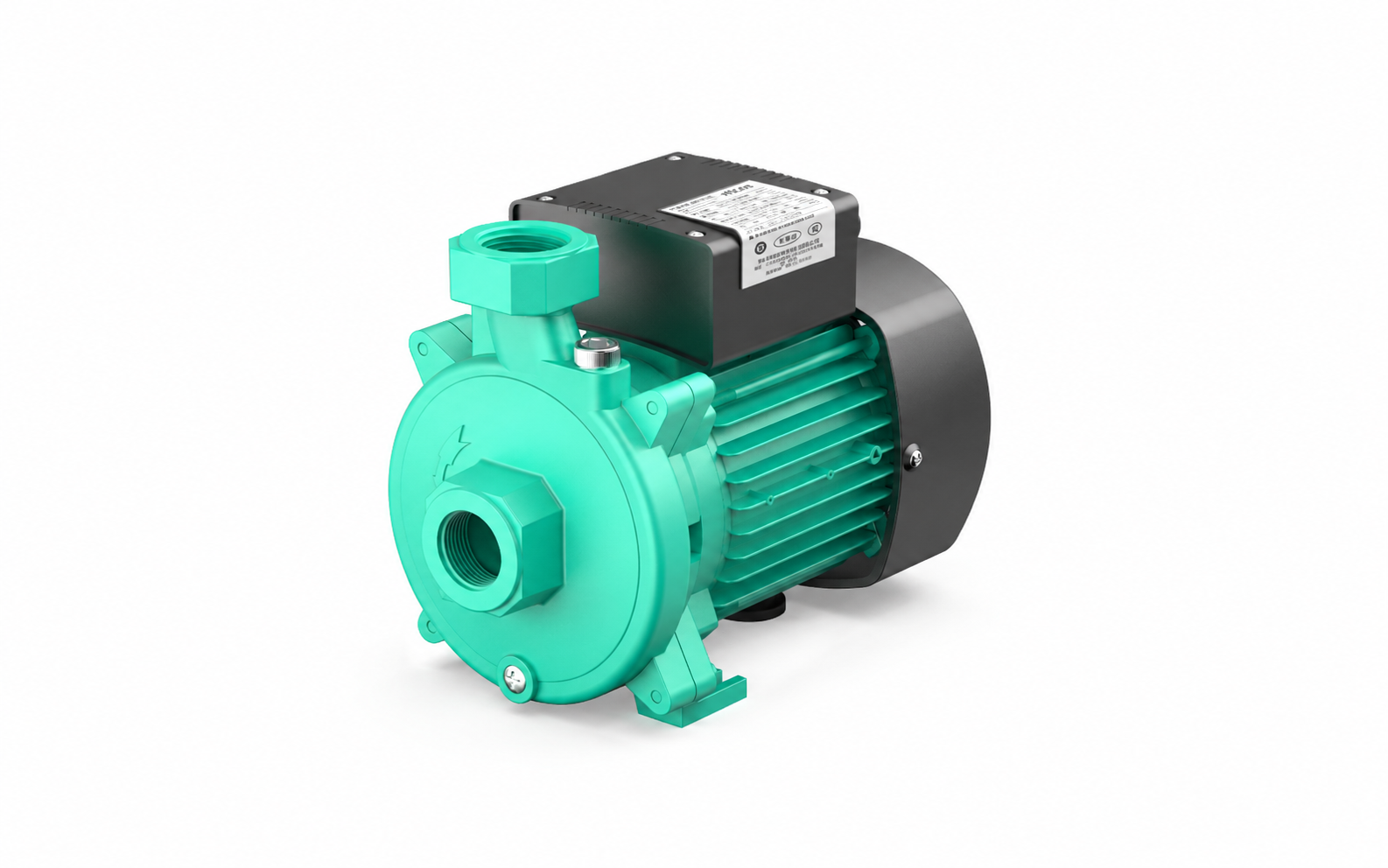

Draconis PUN booster pump features compact design and stable high-head performance at low flow. Its stainless steel pump casing with anti-rust electrophoretic treatment and heat-resistant mechanical seal ensures long service life. Equipped with IP44 Class-F full copper motor, it handles clean water from 0℃ to 90℃, ideal for household water supply, garden irrigation and small HVAC circulation systems.
| Model | PUN |
| Powersource | 220V50HZ/380V50HZ |
| Power | 0.2-1.5KW |
| Approved fluids | Clean water |
| Max flow | 5-28m3/h |
| Max head | 16-32m |
| Rated flow | 3-16m3/h |
| Rated head | 10-23m |
| Inlet/Outlet range | DN25-DN50 |
| Casing | Stainless steel casting with salt spray electrophoresis and rust resistance |
| Impeller | PPO/SS304 |
| Shaft | SS304 |
